Whether you are "Connecting" also called "Redirecting" your to your WebSelf site, or having a domain name hosted by WebSelf, here's how to change the DNS and MX settings for your domain to configure the Suite Office 365:
IMPORTANT:
These settings affect how your domain works with other computers and the Internet. Changing these settings can result in a disruption in service to your website and emails. We therefore recommend only experienced users to make changes to these items.
- In your individual dashboard, click on "Manage" and then on "Domains".

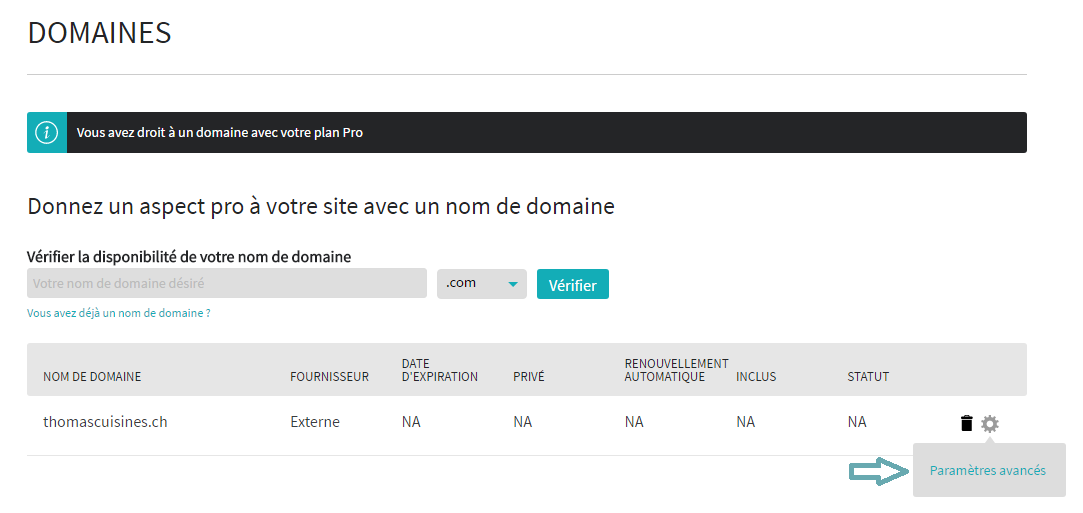

- Go to the gear icon located at the right of your domain name.
- Click on "Advanced Settings".

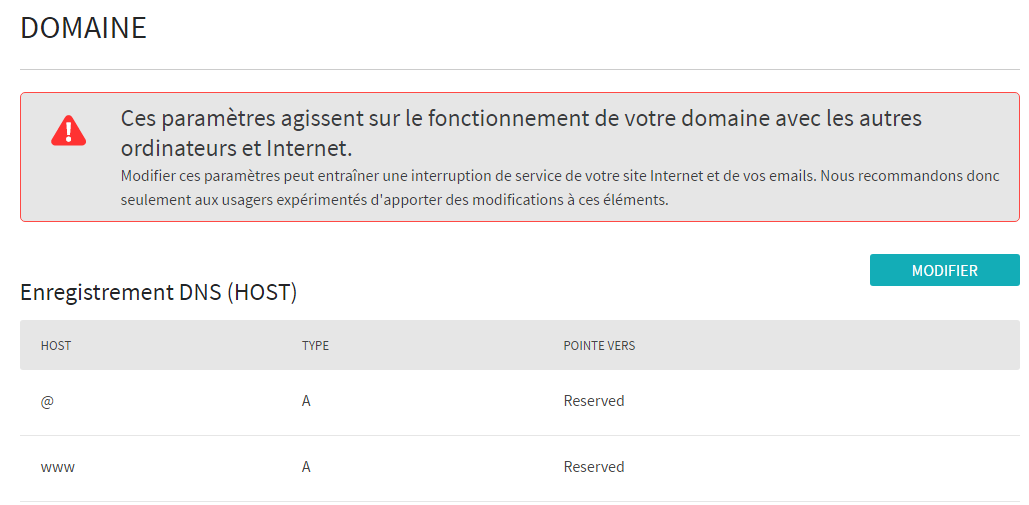

- You will be presented with a table that contains two types of records:
1. DNS records (HOST)
Here you can add a Hostname (record) to your DNS zone:
- Click on Modify.
- Click on OK (to the alert message).
- The Edit DNS table appears.
- Click on Add Host.
- Choose the type of host.
- Enter the name of the host and its value.
- Click on Save.

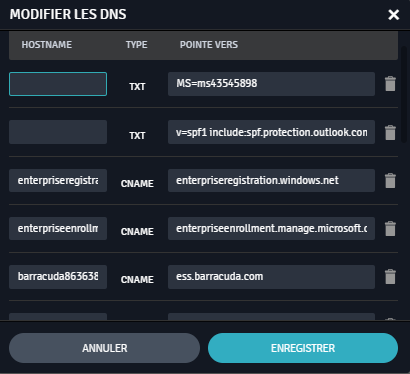

Example of adding DNS records for the Suite Office 365:
Here is how to set up the records that you have received from Microsoft :
IMPORTANT: The values my be different; you are responsible for getting the values that apply to your domain name directly from Microsoft.
HOST | TYPE | TARGET |
@ | A | Reserved |
@ | www | Reserved |
entrepriseregistration | CNAME | entrepriseregistration.windows.net |
entrepriseenrollment | CNAME | entrepriseenrollment.manage.microsoft.com |
barracuda86363805732 | CNAME | ess.barracuda.com |
lyndiscover | CNAME | webdir.online.lync.com |
www | CNAME | d8myjuukarp1u.cloudfront.net |
autodiscover | CNAME | autodiscover.outlook.com |
sip | CNAME | sipdir.online.lync.com |
_sipfederationtls._tcp | SRV | sipfed.online.lync.com |
_sip._tls | SRV | sipdir.online.lync.com |
@ | TXT | MS=ms12345678 |
@ | TXT | v=spf1 include:spf.protection.outlook.com -all |
@ | Redirect | http://www.yourdomaine.com |
NOTE: Sometimes no TXT (MS=ms12345678) and no Redirect records are given.
IMPORTANT:
SRV records use the following format:
PORT PROTOCOL | NAME | SERVICE | PRIORITY | WEIGHT | TARGET |
443 _tls | @ | _sip | 100 | 1 | sipdir.online.lync.com |
5061 _tcp | @ | _sipfederationtls | 100 | 1 | sipfed.online.lync.com |
To configure your SVR records :
IMPORTANT: You must add a sip CNAME record type.
Using the data shown in the example above, here is the order of entry for your SRV record at the WebSelf configuration table:
sip | CNAME | sipdir.online.lync.com | PRIORITY | WEIGHT | TARGET |
_sipfederationtls._tcp | SRV | sipfed.online.lync.com | 100 | 1 | 5061 |
_sip._tls | SRV | sipdir.online.lync.com | 100 | 1 | 443 |

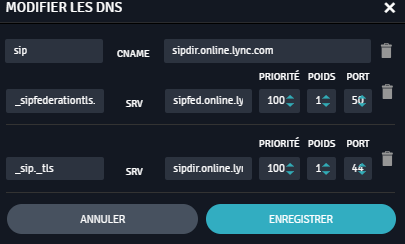

The SVR récords set up in your WebSelf account will look like the example below:
2. ENREGISTREMENTS MX (Email)
HOST | POINTS TO | PRIORITY |
@ | d186804a.ess.barracudanetworks.com | 5 |
@ | d186804b.ess.barracudanetworks.com | 10 |
If you are not using any type of farewall services, simply indicate the MX records that you have received from Microsoft:
Example:
Exchange online | Type | Priority | Host | Target | Lifetime |
0 | @ | groupemercini-com.mail.protection.outlook.com | 1 hour |

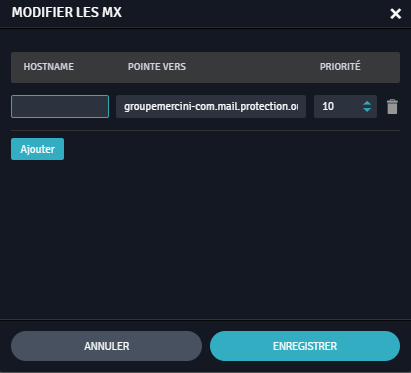

The MX récords set up will look like the example below:
